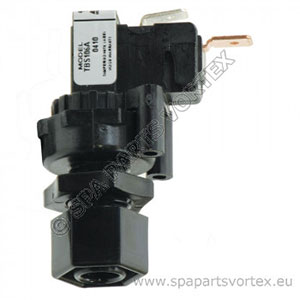

Air Switch TBS135A - alt, SPNO 10amp, low force - long distance
Precio: 18,12 € ex. IVA
Codigo del articulo: AS-TA135
Estado del stock en tiempo real: 122 disponible, 2 - 5 dias de entrega
| Type of product: | Air Switch / Pneumatic Switch |
| Manufacturer: | Tecmark - TBS135A |
| Operation: | Single Pole, Single Throw... This means this is a simple line conductor with a simple on/off configuration. 2 flat spade conductors are used to connect the circuit. This switch is an alternate action meaning it will hold in the on position and then hold in the off position when actuated. |
| Dimensions: |
Height: 48mm |
| Power: | Up to 250vac. 5A resistive, 2A inductive. Specifically designed to run at low pressure. |
| Fits hole size: | 15mm |
| Commonly used with: | This switch is basically the same as the TBS106A but is designed to work at long distance i.e. over 3 metres. Atmospheric pressure can build up in long runs of pipe and cause the switch to come on of its own accord. With this switch it has a special release inside that stops this from happening. Basic operation is to switch either directly an appliance or a relay. |
