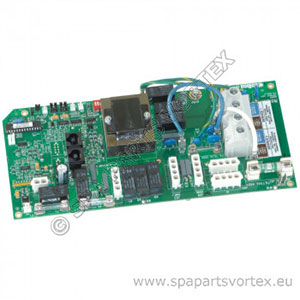

Balboa GS523DZ PCB
Balboa GS523DZ PCB
Precio: 412,35 € ex. IVA
Codigo del articulo: CB-DZ523

Estado del stock en tiempo real: 12 disponible, 2 - 5 dias de entrega

Agregue a la cesta:

Type of Product: PCB or Circuit Board
Manufacturer: Balboa
Power: Volts: 230
Hz: 50
Watts:
Amps:
HP:
Specifications: Pump 1: Single or dual speed + circulation pump if required
Pump 2: Single speed
Pump 3: Single speed
Air Blower: Yes (optional)
Heater: Yes
Ozone: Yes
Light: 12 volt
Sensor style: M7 x 2
Pressure Switch: No
Compatible With: GS523DZ control box. Topside controls from the serial standard VL Deluxe range such as the VL801D.
Dimensions: Length: 280 mm
Height: 130 mm
Additional Notes:

This PCB is used as a replacement for an existing GS523DZ control box with a PCB failure. This must not be fitted to any other device/product. This should be done by an experienced tradesman or a competent individual as a faulty install could result in board damage and invalidate the warranty.

*SPECIAL NOTE* J17 IS A PORT THAT ALLOWS YOU TO RUN EITHER AN AIR BLOWER OR ANOTHER SINGLE SPEED PUMP. THE PORT IS PROTECTED BY A 10 AMP QUICK BLOW FUSE.
